Ergonomix M^®Manipulator
Programmable positioning.
Total control.

Ergonomix M puts you in control of your manufacturing processes by automating the lifting, tilting & rotation of parts. Program once, repeat infinitely. Get the maximum range of motion in a minimum amount of floor space, improve safety, boost part quality, and reduce downtime.

Get a quote Schedule a Demo

engineered to put you in control of your workflow

FULL RANGE OF MOTION in a compact footprint

Low profile design

Engineered to require a minimum amount of floor space while delivering maximimum range of motion

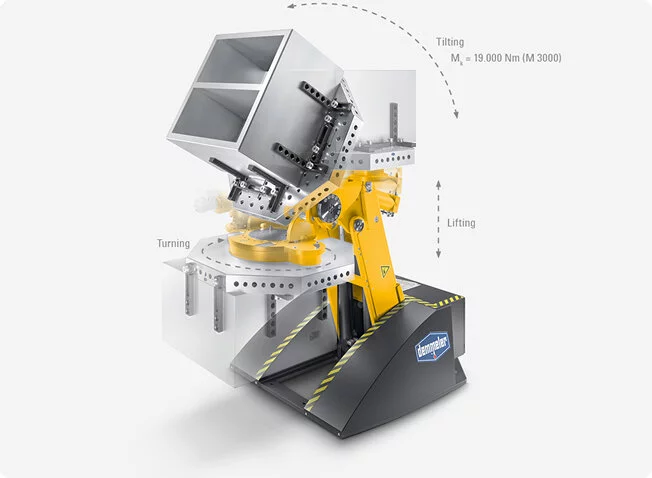

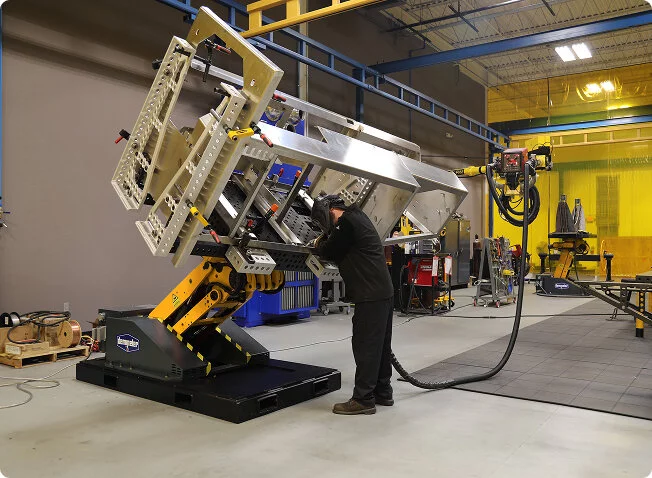

360° continuous rotation, 180° tilt

Allows simultaneous lift, infinite rotation, and unmatched 180° tilt, allowing many weldments to be completed in one fixturing cycle

Multiple configurations

Choose 2-ton/4-ton model based on required lift capacity; configure with one of 3 worktop options

PUSH-BUTTON PRECISION puts control at your fingertips

Store movement sequences

Save and recall up to 100 programs (50 positions each) on the touchscreen-operated teach controller

Control speed easily & precisely

Instantly dial in the right speed on the pendant’s potentiometer for repeatable, controlled motion

Choose from multiple control options

Built-in, pendant, and foot pedal controls are all included for easy push-button operation; touch-screen teach controller optional

PROGRAMMABLE movement saves time, reduces errors

Easy to program

Optional Teach control allows conversational programming of all 3-axes and stores up to 100 programs that can be recalled any time

Easy to use

Teach control’s touchscreen operation and visual on-screen movement simulation make it easy to use

Easy training, less setup time

Teach controller saves repeatable movement sequences, simplifying training and reducing changeover time

SAFETY BY DESIGN, with operators in mind

No more lifting, bending, climbing

Reduces the risk of injury by eliminating manual lifing and repositioning of workpieces

Emergency stop function

Fully depressing the foot pedal immediately halts rotation (panic function)

Security field scanner

Optional scanner keeps workers at a safe distance while positioner is in motion, halting operation if movement is detected in the scan radius

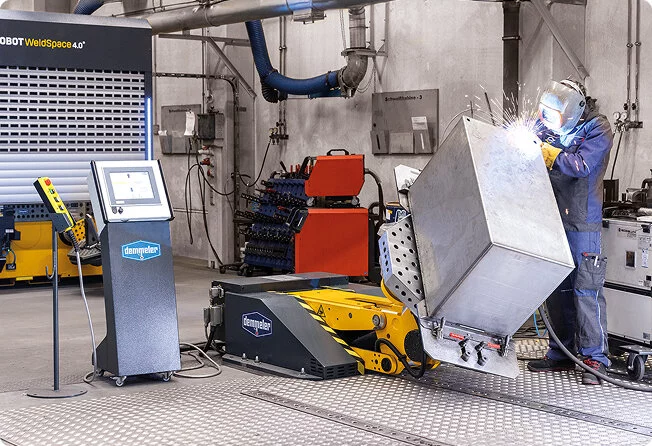

Full-featured control options

Teach Controller

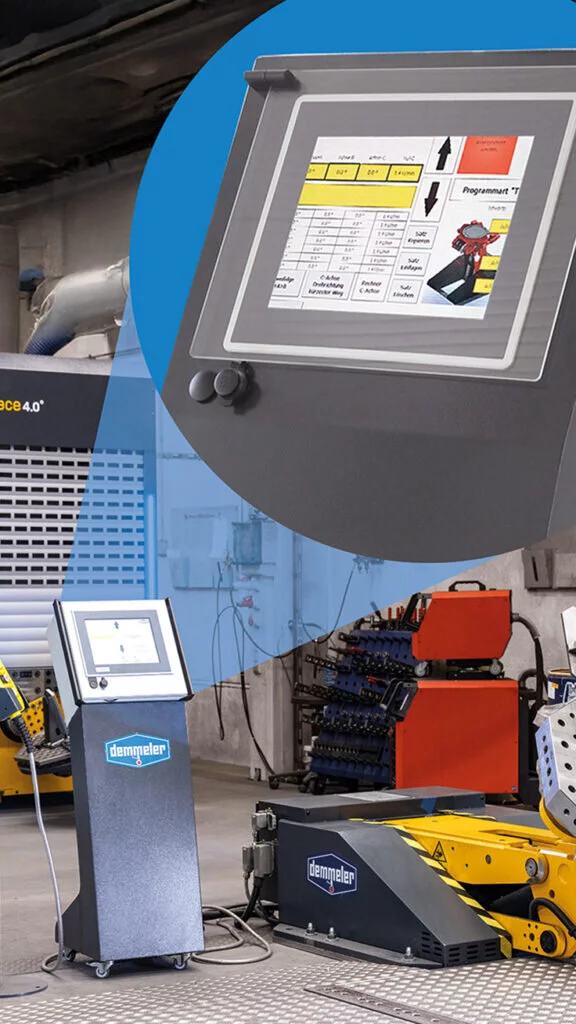

Use the teach controller to manually move each axis into position & save stops at the push of a button. Create repeatable movement sequences that can be recalled anytime. Visual display makes it easy to learn and simple to operate, reducing the time it takes to set up or change over.

10” Touchscreen with intuitive, conversational programming
Stores up to 100 programs with up to 50 positions each)
USB port for easy data transfer & backup
Supports off-line programming

Built-in Controls

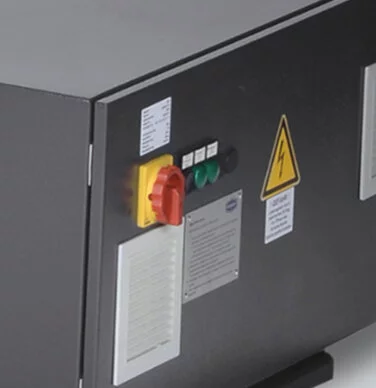

Located on the positioner cabinet, clearly labeled controls include a master power switch and brake testing controls

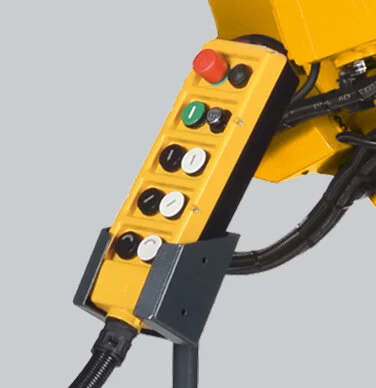

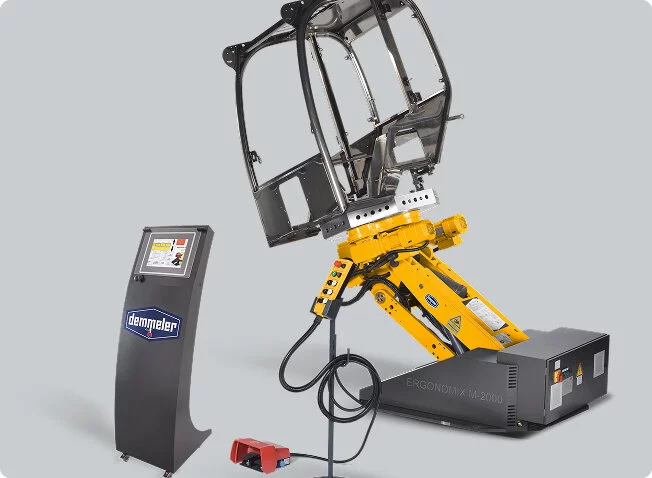

Pendant control

Allows push-button activation of each axis, plus emergency stop and speed adjustment dial with numeric indicator

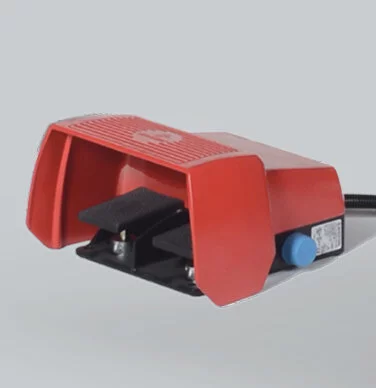

Foot Pedal control

Controls rotation axis with L/R pedal input and Emergency stop function; allows operation without holding deadman switch

SEE IT IN ACTION

Safety, comfort, convenience & efficiency. See for yourself – Ergonomix M brings it all together.

Choose the right package

Explore the choices below to decide which package is right for you. Start by choosing the right load capacity. Next, decide which configuration is best for your needs. Then click on GET A QUOTE and our team will work with you to ensure you’ve chosen the best package for your needs.

2025/06/multi-axis-positioner_2-ton-size_w-d-h-1.png

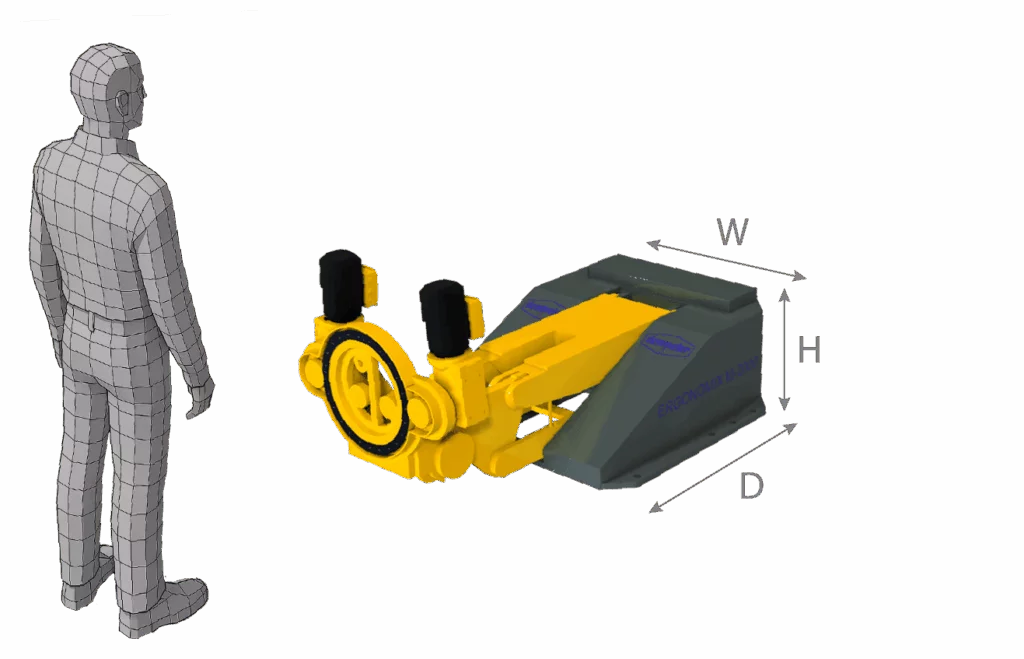

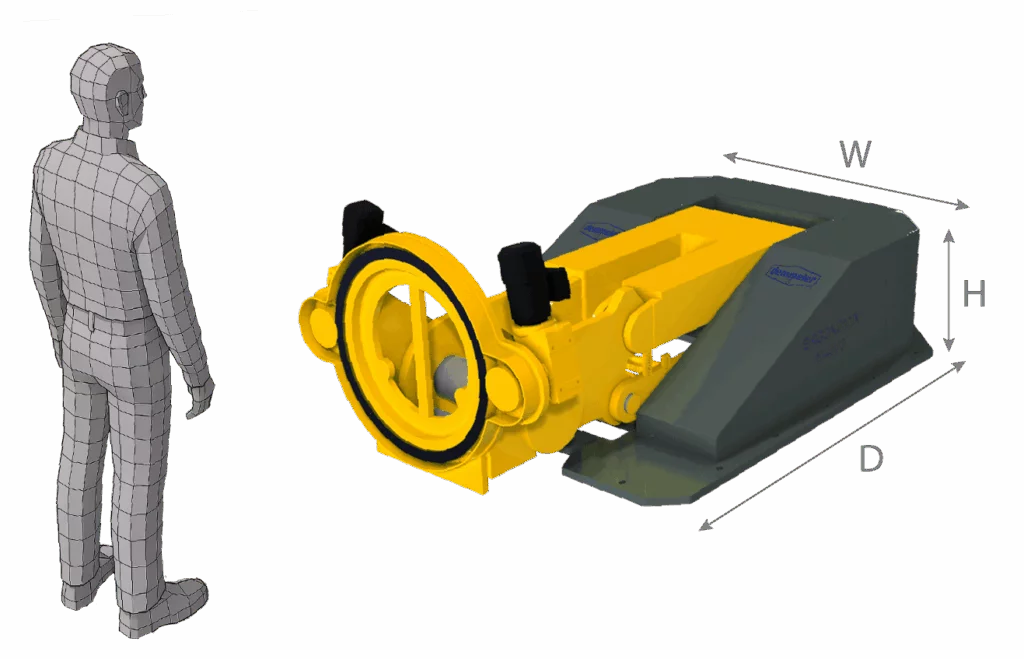

Depth (D): 51 in

Width (W): 46.5 in

Height (H): 19.25 in

ROUND PLATE

Basic configuration
D28 bores & M24 threaded holes on top

LOAD CAPACITY:

4,400 lbs

PLATE SIZE:

1000mm Ø x 25mm

Package #: M28-21925-100RP

3D WELDING TABLE

Designed to handle a variety of part sizes
Extend surface up to 1200 mm (47”) off each side using outrigger angles
D28 bores & M24 threaded holes on top & 4 sides

LOAD CAPACITY:

4,400 lbs

PLATE SIZE:

1000 x 1000 x 200mm

Package #: M28-21925-200ST

3D OCTAGON TABLE

Designed for maximum rotation, even when tilted 180°
Surface can be extended using side stops & small table extensions
D28 bores & M24 threaded holes on top & 8 sides

LOAD CAPACITY:

4,400 lbs

PLATE SIZE:

1000 x 1000 x 100mm

Package #: M28-21925-100HT

2025/06/multi-axis-positioner_4-ton-size_w-d-h-1.png

Depth (D): 89.25 in

Width (W): 65.75 in

Height (H): 26.75 in

ROUND PLATE

Basic configuration
D28 bores & M24 threaded holes on top

LOAD CAPACITY:

8,000 lbs

PLATE SIZE:

1500mm Ø x 25mm

Package #: M28-43250-150RP

3D WELDING TABLE

Designed to handle a variety of part sizes
Extend surface up to 1200 mm (47”) off each side using outrigger angles
D28 bores & M24 threaded holes on top & 4 sides

LOAD CAPACITY:

8,000 lbs

PLATE SIZE:

1500 x 1500 x 200mm

Package #: M28-43250-250ST

3D OCTAGON TABLE

Designed for maximum rotation, even when tilted 180°
Surface can be extended using side stops & small table extensions
D28 bores & M24 threaded holes on top & 8 sides

LOAD CAPACITY:

8,000 lbs

PLATE SIZE:

1500 x 1500 x 100mm

Package #: M28-43250-150HT

Compare ALL Packages & Features

ADD THE RIGHT MODULAR COMPONENTS

Our experienced team will work with you to engineer a scalable solution. One that’s designed not only to solve today’s challenges, but to prepare you for tomorrow’s by ensuring you have the modular components necessary to handle anticipated design changes or product line expansions.

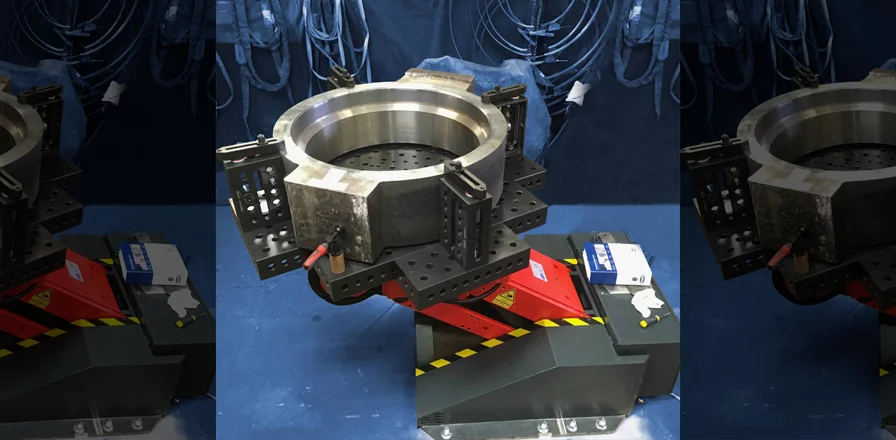

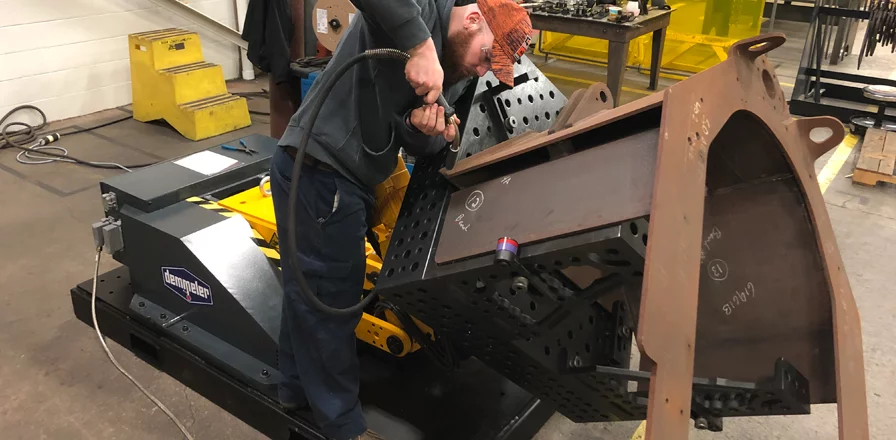

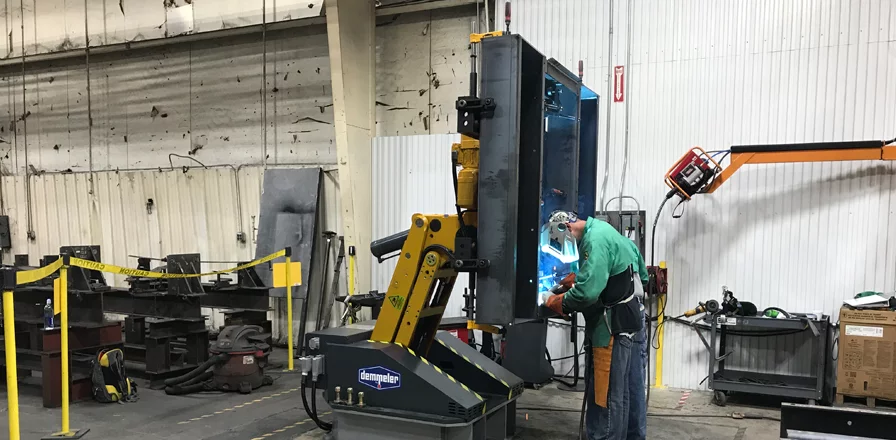

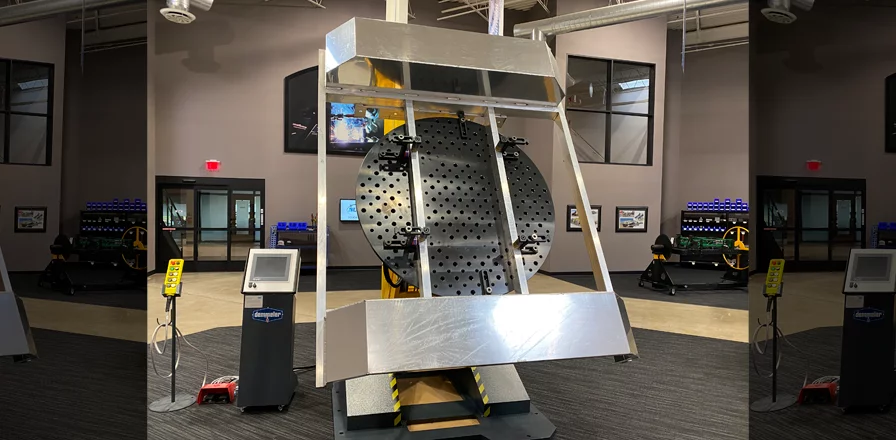

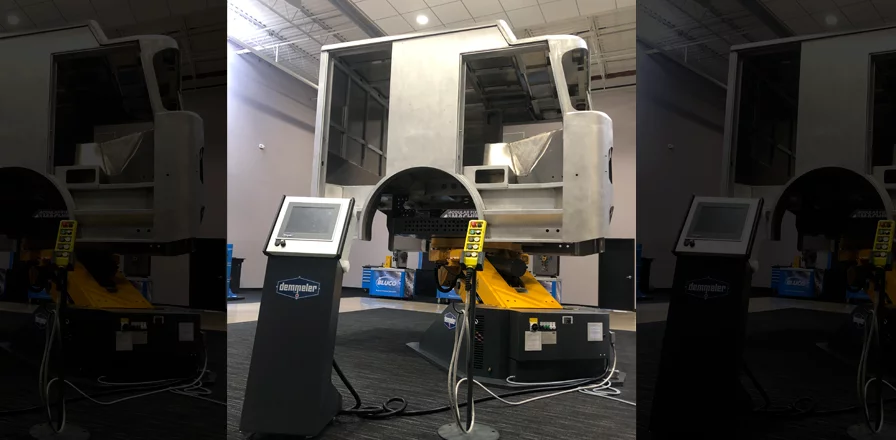

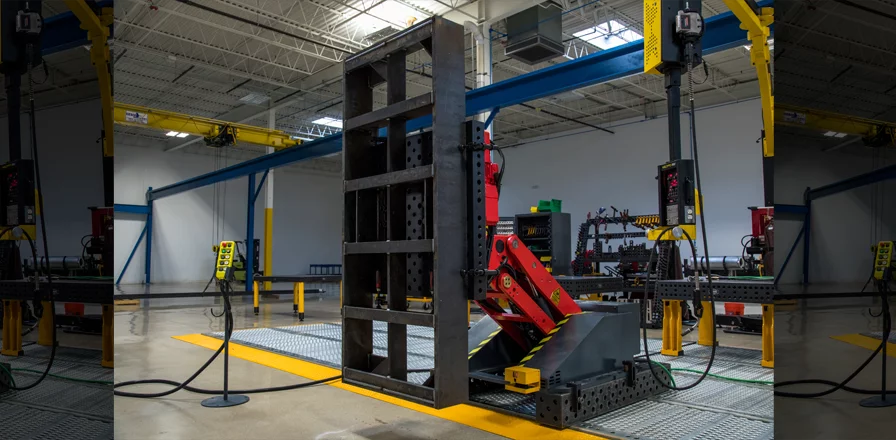

Solutions that Integrate,  Automate & elevate

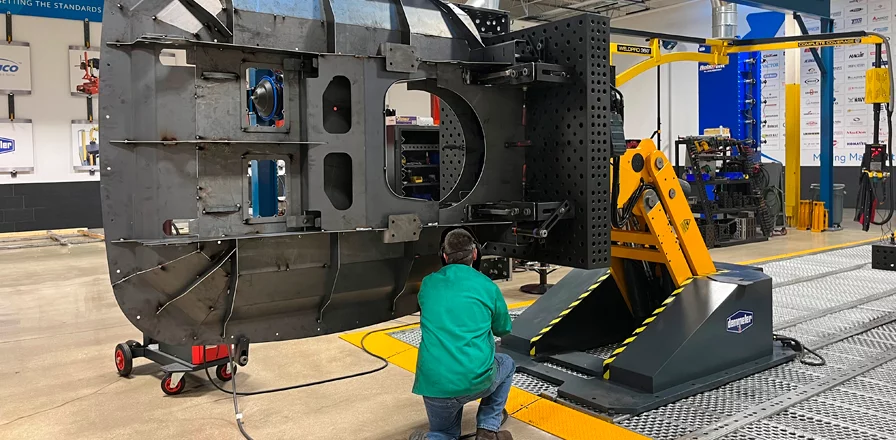

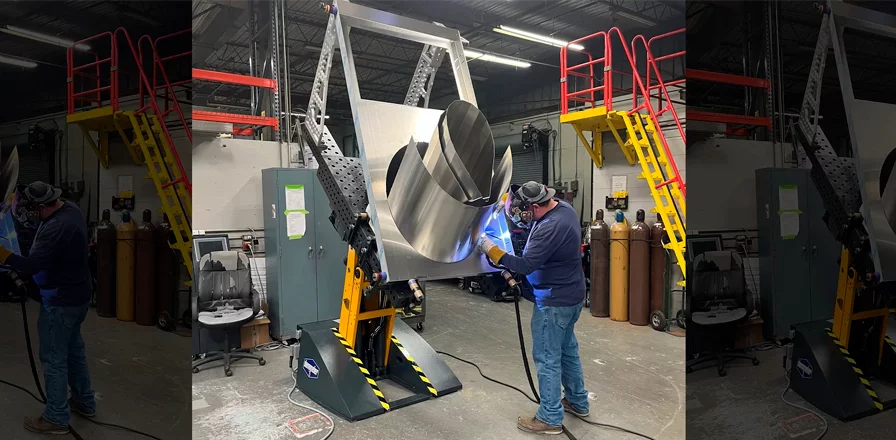

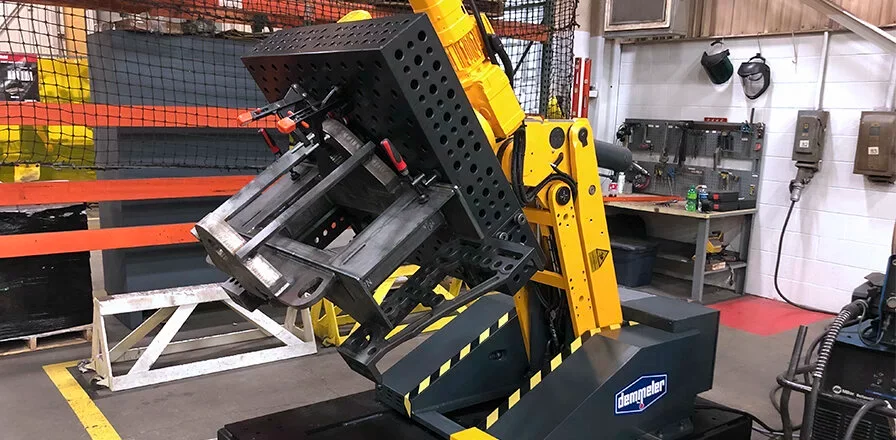

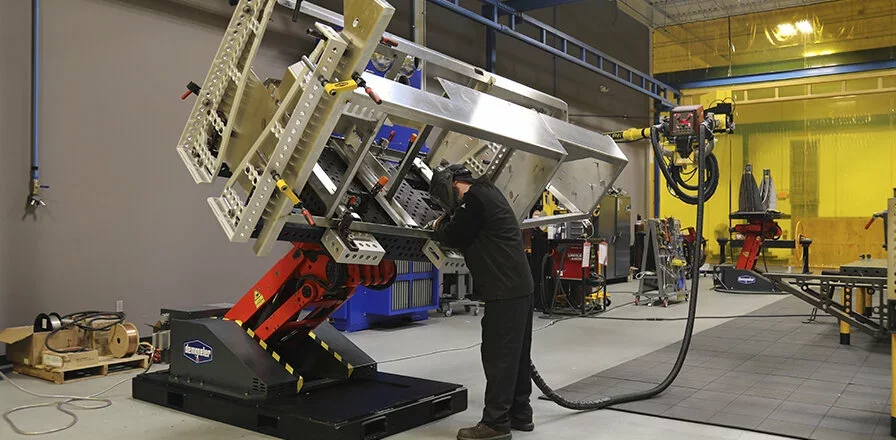

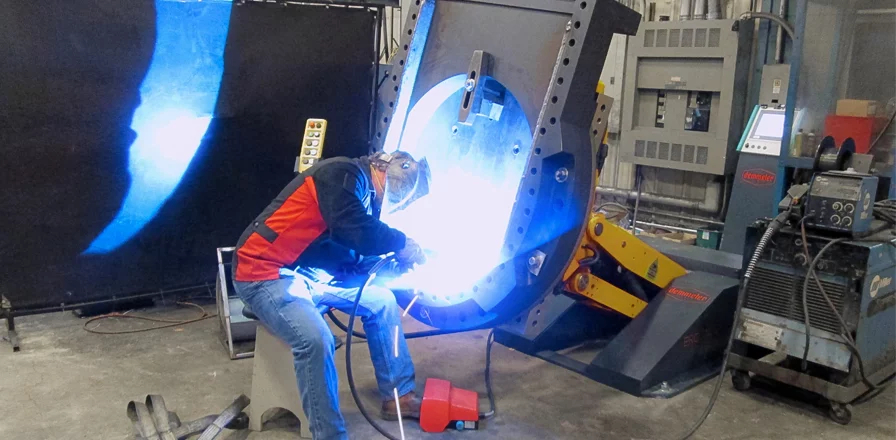

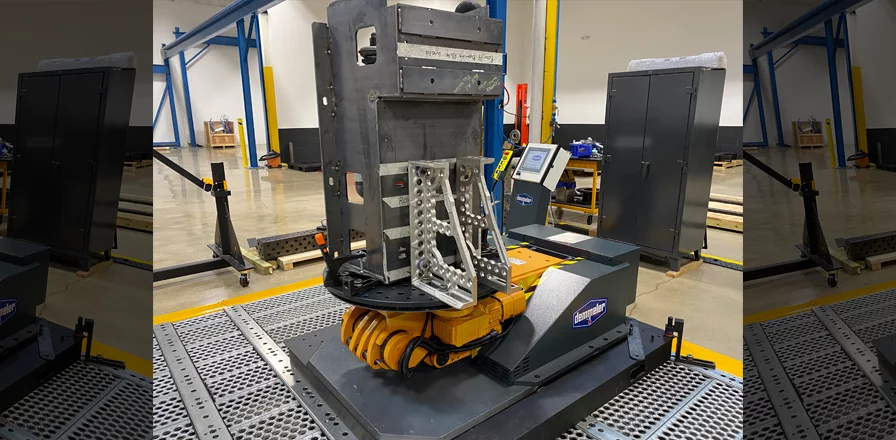

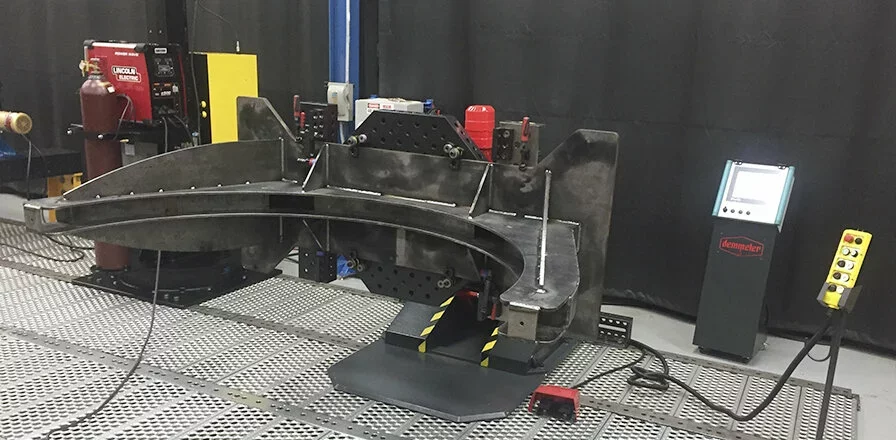

Explore the gallery below to see how manufacturers use Ergonomix M & Bluco modular tooling to streamline operations & position parts for safety, comfort & efficiency.
